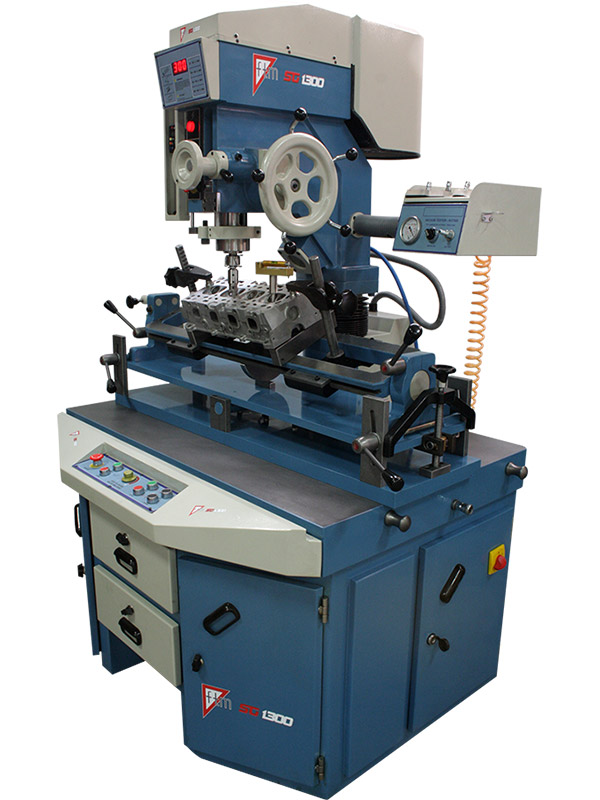

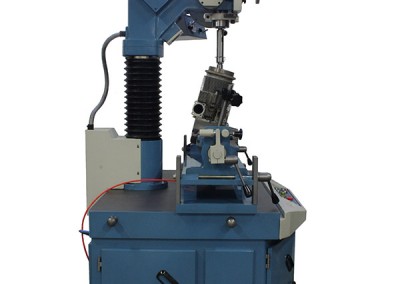

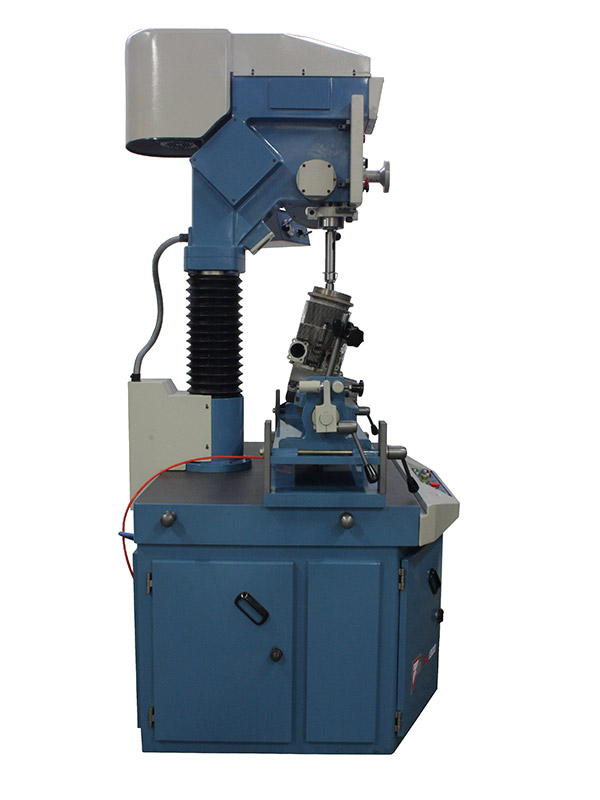

FTM SG 1300 Seat & Guide Machine

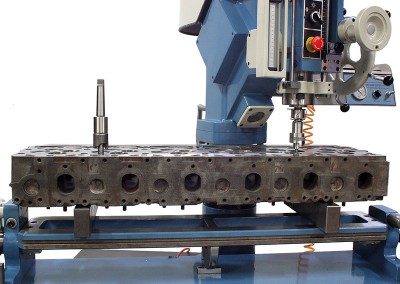

Maximum length of cylinder head: 1300 mm
Minimum valve seal boring diameter: 22 mm
Maximum valve seat boring diameter: 80 mm
Minimum counter boring of valve seal ring diameter: 26 mm
Maximum counter boring of valve seal ring diameter: 80 mm
Max. distance between table surface and spindle nose: 550 mm
Min. distance between table surface and spindle nose: 50 mm
Spindle shaft movement: 180 mm
Work table inclination left to right: 30 degree
Work table inclination front to rear: 45 degree
Spindle motor power: 2800 rpm – 1.5 KW
Spindle rotation: 0 – 600 rpm
Air requirements for the pneumatic system: 6 bar

DIMENSIONS Machine Transport
Length: 1400 mm 2400 mm
Width: 1200 mm 2200 mm
Height: 1900 mm 2350 mm
Machine weight: 1600 Kg 1750 Kg

STANDARD EQUIPMENT
50 pcs. Valve Guide Pilot Steel
12 pcs. Collet Valve Guide Pilot
15 pcs. Pocket Cutter
1 pcs. Pocket Cutter Adapter
1 pcs. Pilot Adapter for Pocket Cutter
1 pcs. Adjustable Level Assembly
1 pcs. Tilting System Kit
1 pcs. Blow Gun With Recoil Hose
1 pcs. Electrical Cabinet Key
1 pcs. Air Pedal
1 pcs. Vacuum test instrument

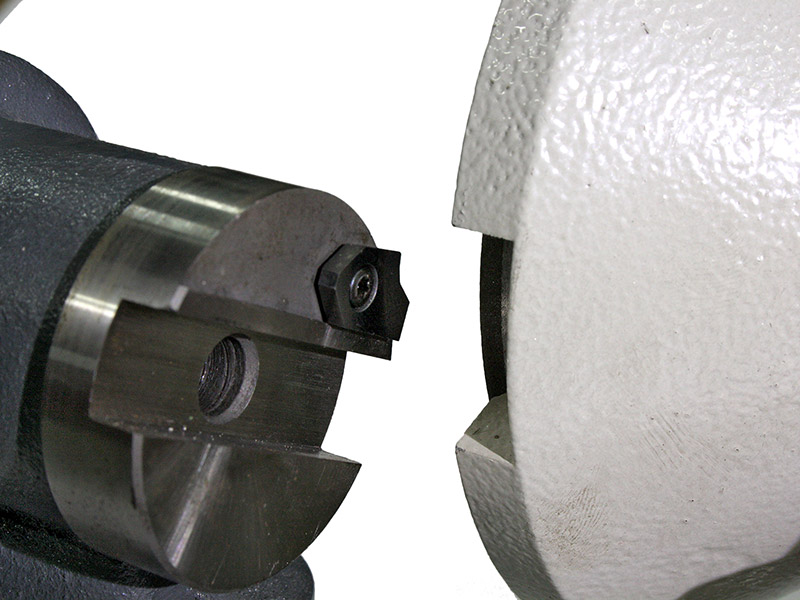

1 pcs. Grinder for tools with sharpening supports

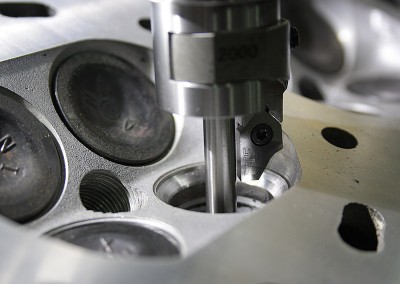

1 pcs. Toolhead 22-60 mm
1 pcs. Cutter body 2000 22-30 mm
1 pcs. Cutter body 2001 28-42 mm
1 pcs. Cutter body 2002 40-60 mm

Heavy duty:
1 pcs. Toolhead 40-80 mm
1 pcs. Cutter body 2003 40-60 mm
1 pcs. Cutter body 2004 58-80 mm
1 pcs. Tool setting micrometer
1 pcs. MT3 Drill Chuck
